Tecnau 1012 Cutter speeds up to 500ft per minute. Pin feeds. Marginal cutter and midform.
Tecnau 1012 Cutter speeds up to 500ft per minute. Pin feeds. Marginal cutter and midform.
Tecnau TC 1105 Merger to be used with a TC 1012 Cutter
Tecnau TC 1105 Merger to be used with a TC 1012 Cutter

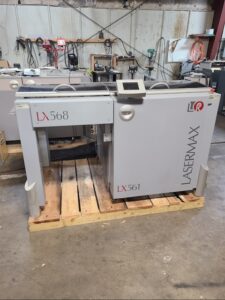

Tecnau 561 Cutter and 568 Stacker
On March 11, 2024 Comments Off on Tecnau 561 Cutter and 568 Stacker No tagsThis can be used in line with a folder and other pre-post equipment.
This can be used in line with a folder and other pre-post equipment.
Tencau-Tc1507D Detentioner (brand new)
On April 21, 2023 Comments Off on Tencau-Tc1507D Detentioner (brand new) No tags
Tencau-Tc1507D Detentioner
New, still in crate.
New, still in crate
Make: Tecnau
Model: LX 555 HS
Description: Rewinder
Speed max.
150 m/min ≈ 500 ft/min
Feeding
Pinfed or Pinless
Paper Weight
10.5# bond – 140# index, 40 – 250 gsm (above 200 gsm with heavy paper kit and prior to application review)
Roll diameter
100 – 1320 mm ≈ 4″ – 52″
Roll weight
630 kg ≈ 1389 lb
Core size
70, 150, 200 mm, 3″, 5″, 6″
Web tension
loose
Web width
200 – 520 mm ≈ 8″ – 20.5″
3in shaft
2 available
Make: Tecnau Model: LX 555 HS Description: Rewinder Speed max. 150 m/min ≈ 500 ft/min Feeding Pinfed or Pinless Paper Weight 10.5# bond – 140# index, 40 – 250 gsm (above 200 gsm with heavy paper kit and prior to application review) Roll diameter 100 – 1320 mm ≈ 4″ – 52″ Roll weight 630 […]
Tecnau (Lasermax)
Model: LX550
Quantity Available: 3
Speed max.
150 m/min ≈ 500 ft/min
Feeding
Pinfed or Pinless
Paper Weight
10.5# bond – 140# index, 40 – 250 gsm (above 200 gsm with heavy paper kit and prior to application review)
Roll diameter
100 – 1320 mm ≈ 4″ – 52″
Roll weight
630 kg ≈ 1389 lb
Core size
70, 150, 200 mm, 3″, 5″, 6″
Web tension
loose
Web width
200 – 520 mm ≈ 8″ – 20.5″
3in shaft
Tecnau (Lasermax) Model: LX550 Quantity Available: 3 Speed max. 150 m/min ≈ 500 ft/min Feeding Pinfed or Pinless Paper Weight 10.5# bond – 140# index, 40 – 250 gsm (above 200 gsm with heavy paper kit and prior to application review) Roll diameter 100 – 1320 mm ≈ 4″ – 52″ Roll weight 630 […]
Make: Tecnau
Model: F4
Description: Folder
Quantity Available: 3
Speed max.
150 m/min ≈ 500 ft/min
Feeding
Pinfed
Paper Weight
60 – 158 gsm / 16 – 42 bond
Web width
203 – 457 ≈ 8″ – 18″
Form Length
178 – 355 mm ≈ 7″ – 14″, 204 – 305 mm ≈ 8″ – 12″, 216 – 280 mm ≈ 8,5″ – 11″, 305 mm ≈ 12 in max (StackRacks)
Stack height
Up to 10000 sheets
Output Options
Duplex, Simplex
Automatic job separation
No
Make: Tecnau Model: F4 Description: Folder Quantity Available: 3 Speed max. 150 m/min ≈ 500 ft/min Feeding Pinfed Paper Weight 60 – 158 gsm / 16 – 42 bond Web width 203 – 457 ≈ 8″ – 18″ Form Length 178 – 355 mm ≈ 7″ – 14″, 204 – 305 mm ≈ 8″ – 12″, […]
Make: Tecnau
Model: LX 535
Description: Slit Merge
Quantity Available: 3
The Merger LX535 option allows a 2‑up printed web to be slit and merged into a single, collated paper stream. Positioned before the Cutter, the web enters the Merger LX535 and is slit in the center. A sensor continuously monitors the web for side‑to‑side variations or movement and the slitter automatically adjusts to cut precisely at the center of the web. The resulting two webs are then merged right‑over‑left or left‑over‑right, depending on the requirements of the application.
Make: Tecnau Model: LX 535 Description: Slit Merge Quantity Available: 3 The Merger LX535 option allows a 2‑up printed web to be slit and merged into a single, collated paper stream. Positioned before the Cutter, the web enters the Merger LX535 and is slit in the center. A sensor continuously monitors the web for side‑to‑side variations […]

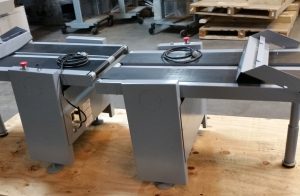

Make: Tecnau
Model: N/A
Description: Conveyor
Quantity Available: 4
Long and short available.
This conveyor table allows different delivery option to smoothly transport completed stacks of paper out of the stack system installed along the solution. Different lengths are available to gently move large amount of printed stacks with multiple impositions.
Make: Tecnau Model: N/A Description: Conveyor Quantity Available: 4 Long and short available. This conveyor table allows different delivery option to smoothly transport completed stacks of paper out of the stack system installed along the solution. Different lengths are available to gently move large amount of printed stacks with multiple impositions. […]
